Anti Static Air Flowing Raised Access Floor Panels Modular

Name: Anti Static Air Flowing Raised Access Floor Panels Modular
Brand: Anti Static Air Flowing Raised Access Floor Panels Modular
SKU: Anti Static Air Flowing Raised Access Floor Panels Modular
Rating: 4.8 (159 reviews)

Product Details

Certification: CE, ISO

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Anti Static Raised Access Floor Panels, Air Flowing Raised Access Floor Panels, Modular Raised Access Floor Panels


Model NO.:	OYN AIR	Size:	600*600mm
Function:	Anti-Fouling, Fireproof, Soundproof, Anti-static	Surface Treatment:	UV Anti-Static HPL
Color:	White	Metal Type:	Steel
Usage:	Electrical Factory, Computer Room, Clean Workshop, Monitor Room	Advantage:	Long Life Of Usage
Customized:	Customized	System Resistance:	Dissipative
Combustion Performance:	A1 Level For Based Board	Combustion Perfoard:	Fv-1 Level For HPL
Surface Treatmeent For Based Board:	Epoxy Resin	Major Technology:	Automatic Welding

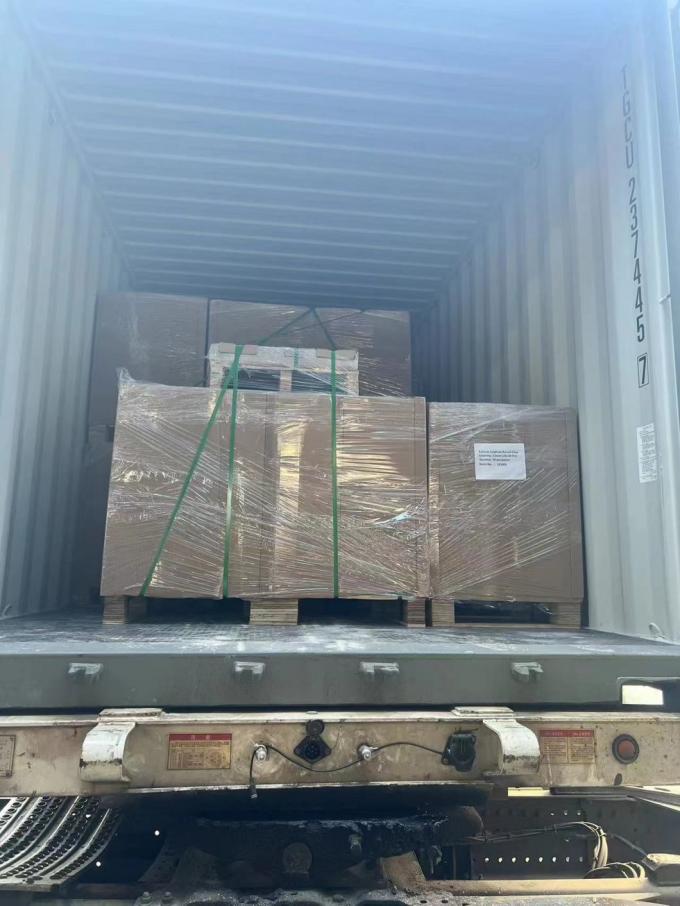

Transport Package:	Wodden	Specification:	Cement Filled, Frame Structure
Trademark:	OYANA	Origin:	China
HS Code:	73089000	Supply Ability:	500000 Pieces
Package Size:	61.00cm * 61.00cm * 15.00cm	Package Gross Weight:	15.000kg
After-sales Service:	Online Support	Warranty:	1 Year
Material:	Metal	Samples:	US$ 0/Piece 1 Piece(Min.Order) \|
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.	:	Initial Payment Full Payment
Currency:	US$	Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Model NO.:	OYN AIR
Size:	600*600mm
Function:	Anti-Fouling, Fireproof, Soundproof, Anti-static
Surface Treatment:	UV Anti-Static HPL
Color:	White
Metal Type:	Steel
Usage:	Electrical Factory, Computer Room, Clean Workshop, Monitor Room
Advantage:	Long Life Of Usage
Customized:	Customized
System Resistance:	Dissipative
Combustion Performance:	A1 Level For Based Board
Combustion Perfoard:	Fv-1 Level For HPL
Surface Treatmeent For Based Board:	Epoxy Resin
Major Technology:	Automatic Welding

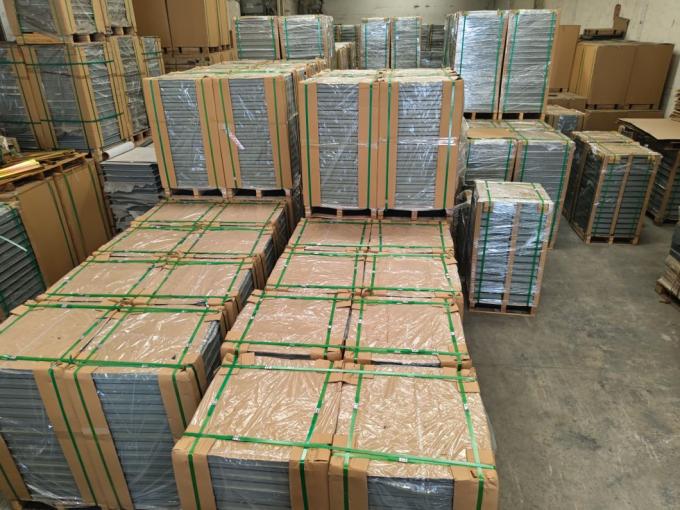

Transport Package:	Wodden
Specification:	Cement Filled, Frame Structure
Trademark:	OYANA
Origin:	China
HS Code:	73089000
Supply Ability:	500000 Pieces
Package Size:	61.00cm * 61.00cm * 15.00cm
Package Gross Weight:	15.000kg
After-sales Service:	Online Support
Warranty:	1 Year
Material:	Metal
Samples:	US$ 0/Piece 1 Piece(Min.Order) \|
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment
Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Description

Anti Static Air Flowing Raised Access Floor Panels Modular

Product Description

Anti-Static Raised Accees Floor for Air Flowing

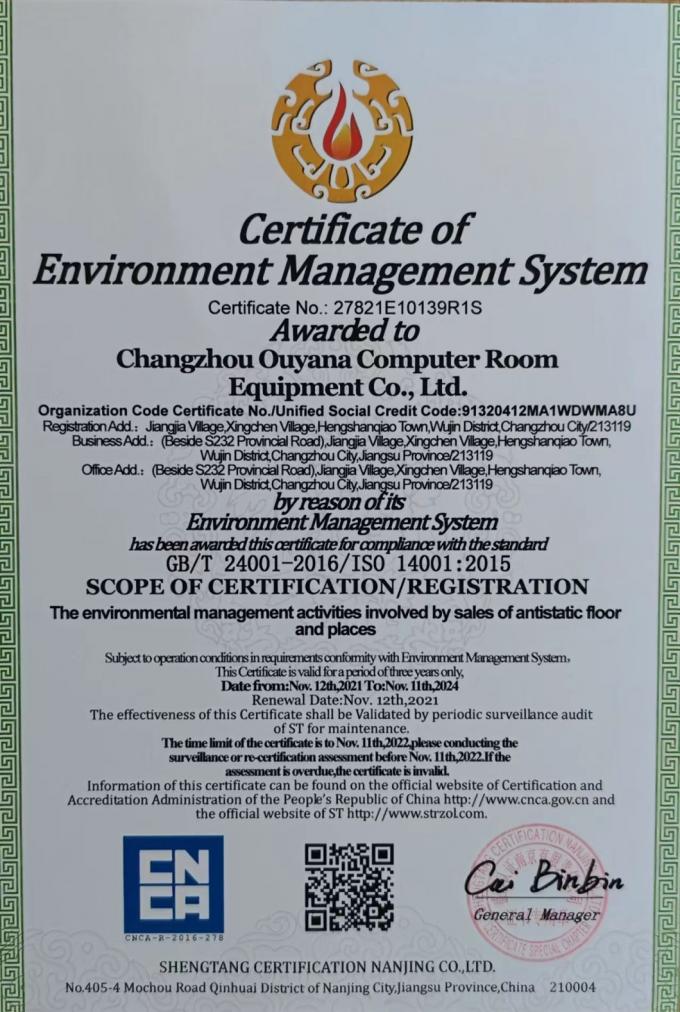

OYANA Computer Room Equipment Co.,Ltd is mainly producing OA network raised floor,Anti-static raised access floor. Calcium Sulphate Access floor. we have got ISO9001 , ISO14001 certificate.

It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.

OYANA Company makes a contribution for products especially on peforated steel raised floor with intelligent adjustment for temperature control system ,It is a special equipment for colling dispatch in data center.

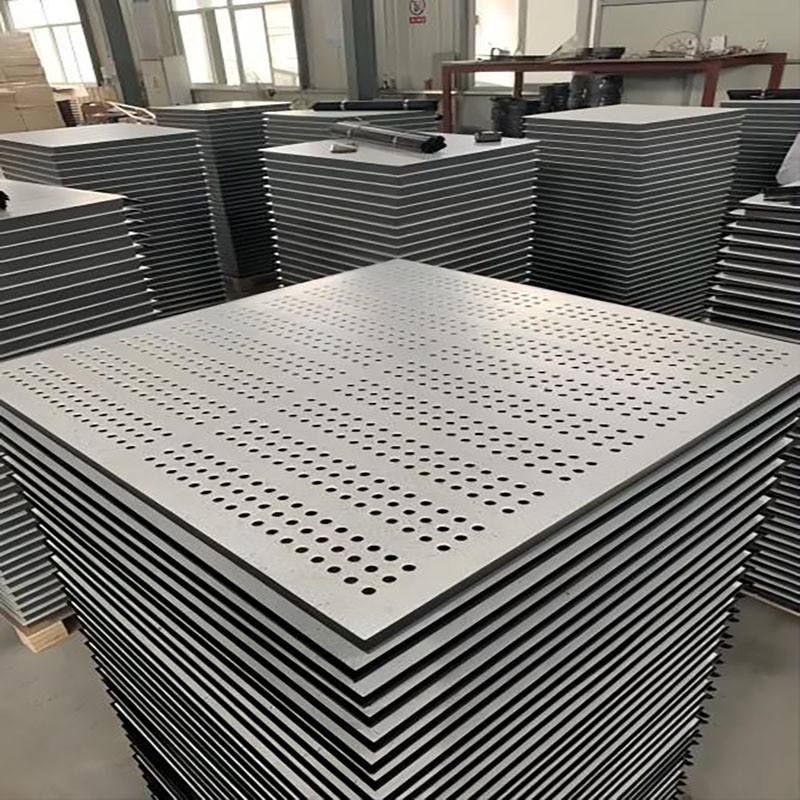

Besides many kinds of molds to produce peforated floor.Many different holes are punched on the cold-rolled steel plate

Pay attention,Pay attention,we can OEM

Prodcut Name: Raised Floor(Black edge)

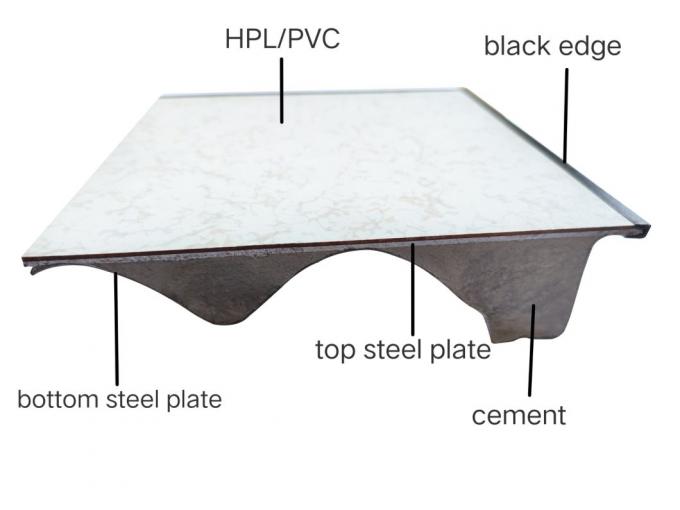

Structure:
Top plate using SPCC hard rolled steel,bottom plate using ST14 steel for strecth,after automatic spot welding,The panel is infilled with cement, The surface of panel adopts resistance and anti-static HPL/PVC

Feacture:

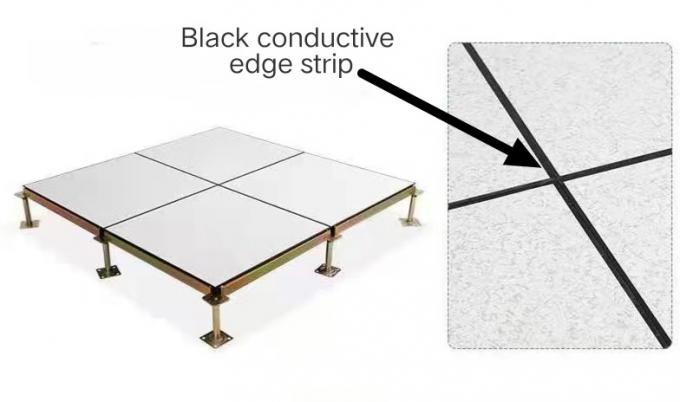

1.Black conductive edge strip around the panel
2.Conbustion permance is A1 level for based board
3.Structural stability and quicker installation
4.All steel is using epoxy resin for rust-proof of based board
5.High loading capactiy,sound-proof

Type:OYN-670
size:600*600*35
surface with anti-static HPL 1.2mm
concentrated load ≥670lb,2950N

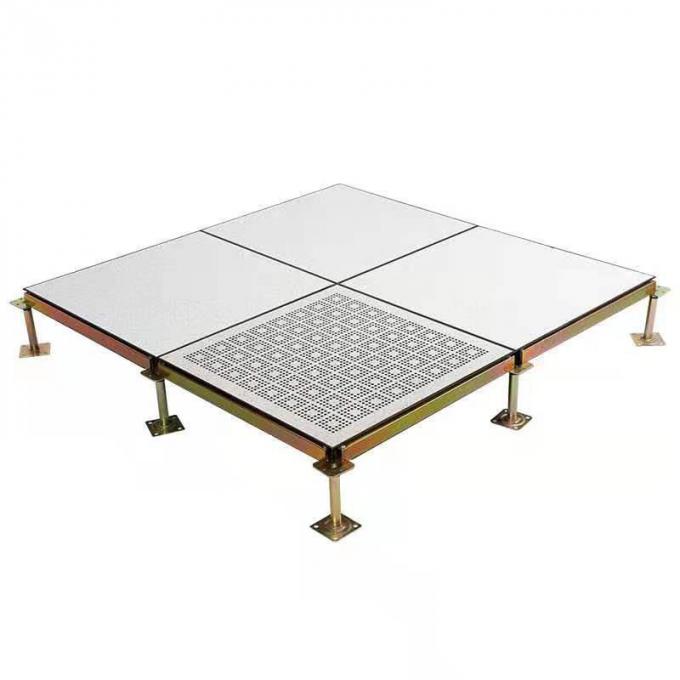

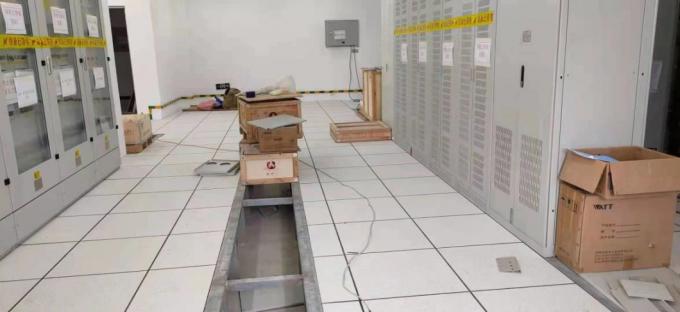

cement panel and ventilation panel are assembled together for data center

Application:

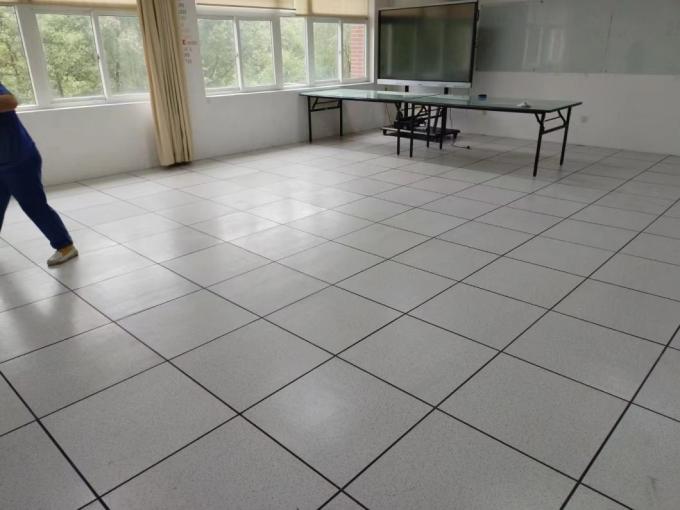

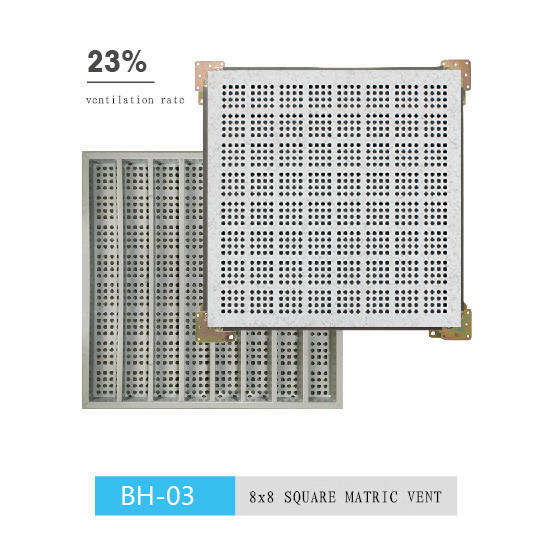

Ventilation plate has all the characteristics of cement panel. It can meet the needs of 0-85% ventilation by means of ventilation regulator. Banks, government, enterprises and institutions of high-grade computer rooms, clean rooms, purification rooms and places with high load-bearing and material requirements.

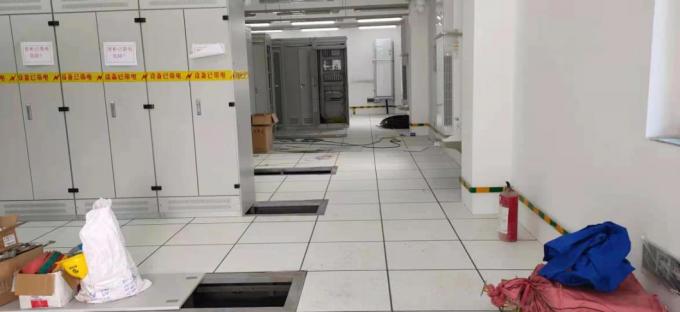

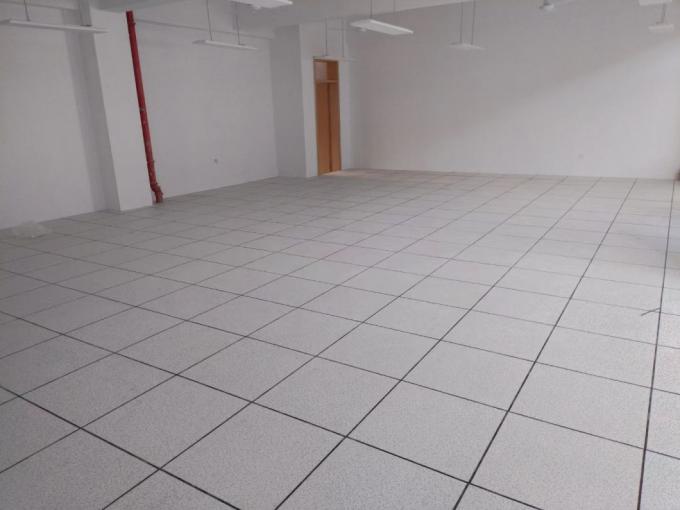

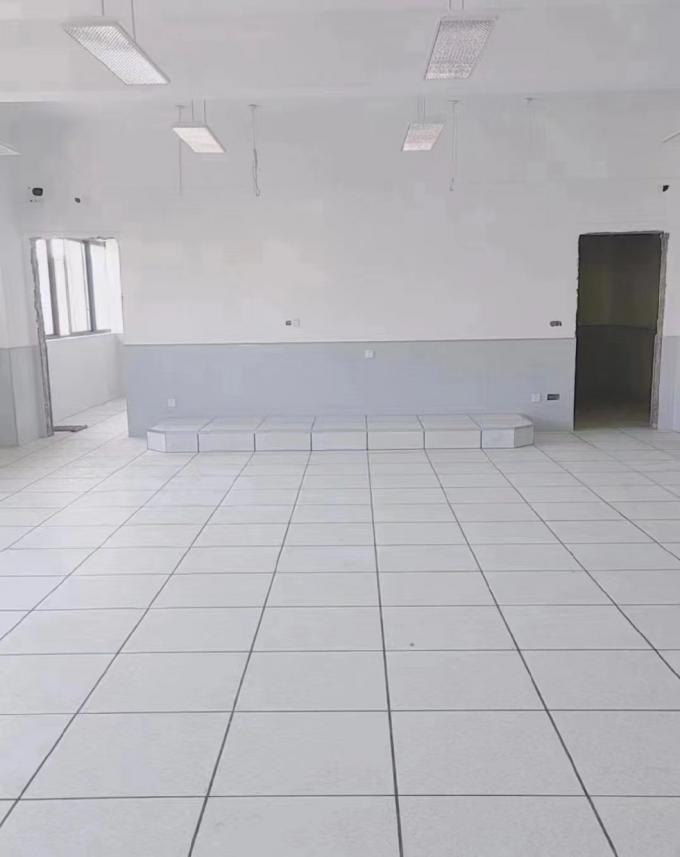

Ventilation floor can be installed with cemented raised floor for data room to ajust the temperature.

Characteristics:
Various materials, sizes and specifications.
Antistatic performance is outstanding.
Various pass/ventilation rate.
Stable performance, no recession, no deformation.
High strength and high bearing capacity.

Application:
Ventilation plate has all the characteristics of cement infill floor. It can meet the needs of 0-85% ventilation by means of ventilation regulator. Banks, government, enterprises and institutions of high-grade computer rooms, clean rooms, purification rooms and places with high load-bearing and material requirements.

Raised Access Floor Parameters

	Dimensions(mm)	Concentrated Load	Uniform Load	Impact Load
OYN-440	60060035mm	440 LB / 1960 N	2148 LB / 9720 N	150 LB/ 68KG
OYN-670	60060035mm	670 LB / 2950 N	2808 LB / 12500 N	200 LB/ 90KG
OYN-800	60060035mm	800 LB / 3560 N	3596 LB / 16100 N	250 LB/ 112 KG
OYN-1000	60060035mm	1000 LB / 4450 N	5168 LB /23000 N	300 LB/ 135 KG
OYN-1250	60060035mm	1250 LB / 5560 N	7415 LB / 33000 N	350 LB/ 158 KG

Rsised FLOOR TEST REPORT   (No:1098)

SUBJECT:

Testing of Anti-static Raised Floor by OUYANA Co.,Ltd

Product Name:Anti-static Raised Access Floor

Model:      HDG.600*600*35mm(OYN-800)

Date:       Mar.7^th,2022

Quantity of samples: 1PS Panel + 1PS HPL

Testing Environment	Temperature: 25ºC
	Relative: 45%RH

Test result summary table for panel

TEST ITEMS	SPECIFICATION		TEST RUSELTS
1.System Resistance	Conductive: < 1.0x10⁶Ω
	Dissipative: 1.0x10⁶Ω - 1.0x10¹⁰Ω		7.28X10⁸Ω

2.Mechanical properties	Point Load: =300N(30Kg)	Deflection:	Centre: =0mm	Centre of edge =0mm
		Permanent Deflection:	Centre: =0mm	Centre of edge =0mm
	Point Load: =3560N(300Kg)	Deflection:	Centre: ≤1.5mm	Centre of edge ≤1.6mm
		Permanent Deflection:	Centre: ≤1mm	Centre of edge ≤1mm
	Uniform Distributed Load: =16100N/M²		Deflection: ≤0.05mm	Permanent Deflection: ≤0.05mm
	Ultimate load:		11000N
	Rolling load: 10times/10000times		3560N/2670N

3.combustion performance	Grade:A1

Test result summary table for Anti-static Laminate(HPL)

Product Name:Anti-static Laminate

size: HDG.600*600*1.2(mm)

Date: Nov.17^th,2022

TEST ITEMS	SPECIFICATION	TEST RUSELTS
Surface Resistance:	1.0x10⁴-1.0x10⁹Ω	4.74X10⁸Ω
Volume Resistance:	1.0x10⁴-1.0x10⁹Ω	1.98X10⁸Ω
Wear Proof Property:	Ultra-high wear properties≥3000r	3400r
Combustion Performance	Finishing Material: HPL≤30S Grade:FV-1	29.80S
