Heavy Duty OA Raised Floor Network Access For School

Name: Heavy Duty OA Raised Floor Network Access For School
Brand: Heavy Duty OA Raised Floor Network Access For School
SKU: Heavy Duty OA Raised Floor Network Access For School
Rating: 4.5 (196 reviews)

Product Details

Certification: CE, ISO

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Network Access OA Raised Floor, Heavy Duty OA Raised Floor, School OA Raised Floor


Model NO.:	OYN--1000	Size:	600*600mm
Function:	Thermal Insulation, Fireproof, Soundproof, Waterproof, Anti-static	Surface Treatment:	Epoxy Resin
Color:	Black	Metal Type:	Steel
Usage:	Bank, Offices	Advantage:	Long Life Of Usage
Customized:	Customized	Combusition Permance:	A1 Level For Panel
Surface Treament:	Epoxy Resin	Major Technology:	Welding
Major Material:	Steel ,Cement	Transport Package:	Wood Pallet
Specification:	50050028 Cement Filling	Trademark:	OYANA
Origin:	China	HS Code:	73089000
Supply Ability:	1000000/Year	Package Size:	61.00cm * 61.00cm * 15.00cm
Package Gross Weight:	16.000kg	After-sales Service:	Online Support
Warranty:	1 Year	Material:	Metal
Samples:	US$ 0/piece 1 Piece(Min.Order) \|	Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment	Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Model NO.:	OYN--1000
Size:	600*600mm
Function:	Thermal Insulation, Fireproof, Soundproof, Waterproof, Anti-static
Surface Treatment:	Epoxy Resin
Color:	Black
Metal Type:	Steel
Usage:	Bank, Offices
Advantage:	Long Life Of Usage
Customized:	Customized
Combusition Permance:	A1 Level For Panel
Surface Treament:	Epoxy Resin
Major Technology:	Welding
Major Material:	Steel ,Cement
Transport Package:	Wood Pallet
Specification:	50050028 Cement Filling
Trademark:	OYANA
Origin:	China
HS Code:	73089000
Supply Ability:	1000000/Year
Package Size:	61.00cm * 61.00cm * 15.00cm
Package Gross Weight:	16.000kg
After-sales Service:	Online Support
Warranty:	1 Year
Material:	Metal
Samples:	US$ 0/piece 1 Piece(Min.Order) \|
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment
Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Description

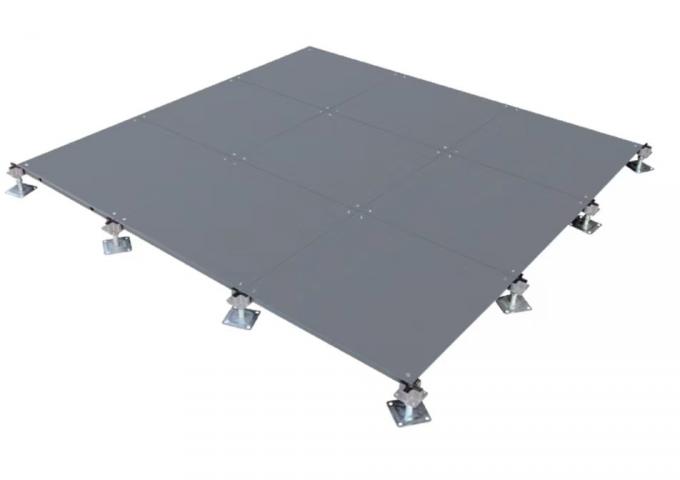

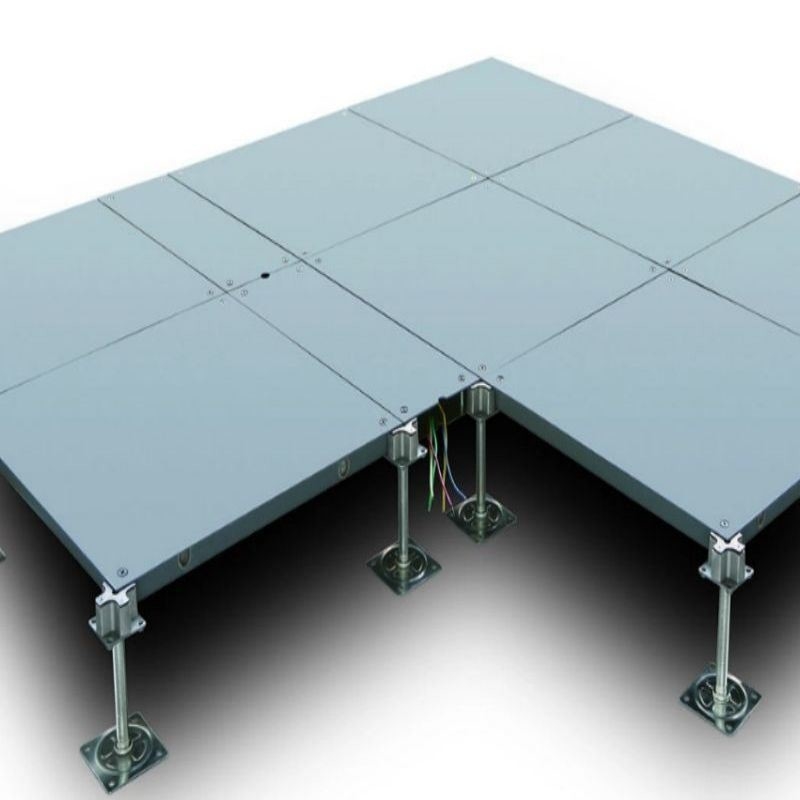

Heavy Duty OA Raised Floor Network Access For School

Product Description

Structure:
The upper steel plate is SPCC cold-rolled steel,The lower steel plate is ST14 stretch steel plate. after automatic spot welding,non-phosphorus rust prevention technology and epoxy resin coated.The panel is infilled with cement.Each panel has 4 corner lock holes.

Feature:
---All stell structure , excellent loading capacity and fire-resistance.
---Adjustable height is 35mm-200mm,50mm is convenient for outlet box to check and replace network lline or cable line
---Easy to install .Long life of usage.soundproof
---PVC or carpet can be laied over the pane
---Dimension accuracy with great interchangeability

Application:
OA600 Net Floor is widely used in 5A Intelligent building and office building .Old office buliding can be remoulding and upgrading with lowest cost.

OA Raised Floor Network Access Floor for School

Type:OYN-800
Size:600*600*33mm
concentrated load ≥800 lb,3560 N

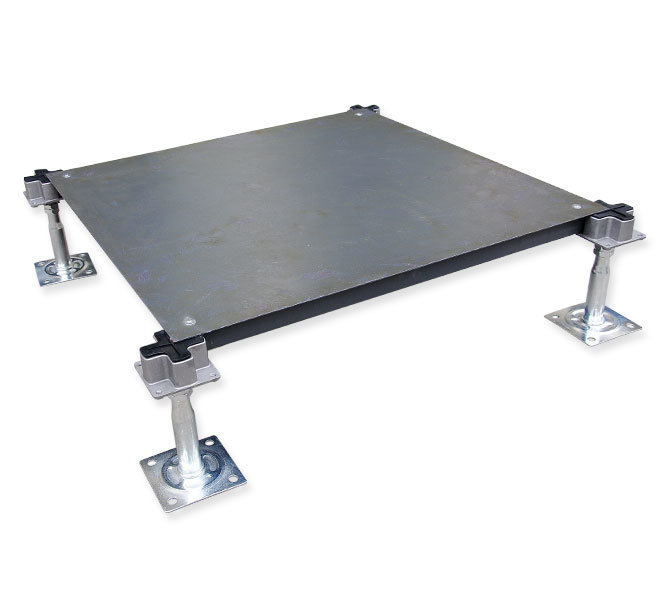

>>>Supports
provided with corner locks and the adjustable four-corner supports,as well as one bracket supports four panel

>>>Features
The holes of corner locks on the molded floor can essure the stableness of flooring system

>>>Configuration
The final flooring can employ square carpets,rolled carpets or PVC veneers and solid wood blocks

>>>Permance
Strong in carrying capacity
good in fireproof and corrosion resistance
compression molding forming
good in interchangeability,easy to assembel and fast to repair

OA raised floor parameters

Type	Dimensions(mm)	Concentrated Load	Uniform Load	Impact Load
OYN440	60060033mm	440 LB / 1960 N	2148 LB / 9720 N	100 LB/ 45 KG
OYN670	60060033mm	670 LB / 2950 N	2808 LB / 12500 N	150 LB/ 68 KG
OYN800	60060033mm	800 LB / 3560 N	3596 LB / 16100N	180LB/ 81 KG
OYN1000	60060033mm	1000LB / 4450 N	5215 LB / 23000 N	210LB/ 95KG

OA Rsised FLOOR TEST REPORT   (No:852)

SUBJECT:

Testing of Anti-static Raised Floor by OUYANA Co.,Ltd

Product Name:Anti-static Raised Access Floor

Model:      HDG.600*600*35mm(OYN-670)

Date:       Mar.7^th,2022

Quantity of samples: 1PS Panel + 1PS HPL

Testing Environment	Temperature: 25ºC
	Relative: 45%RH

Test result summary table for panel

TEST ITEMS	SPECIFICATION		TEST RUSELTS

2.Mechanical properties	Point Load: =300N(30Kg)	Deflection:	Centre: =0mm	Centre of edge: =0mm
	Point Load: =300N(30Kg)	Permanent Deflection:	Centre: =0mm	Centre of edge: =0mm
	Point Load: =2950N(300Kg)	Deflection:	Centre: ≤1.5mm	Centre of edge: ≤1.6mm
	Point Load: =2950N(300Kg)	Permanent Deflection:	Centre: ≤1.5mm	Centre of edge: ≤1.6mm
	Uniform Distributed Load: =12500N/M²		Deflection:≤0.05mm	Permanent Deflection:≤0.05mm
	Ultimate load:		8850N
	Rolling load: 10times/10000times		2946N/2356N

3.combustion performance	Grade:A1

OYANA Computer Room Equipment Co.,Ltd is mainly producing OA network raised floor,Anti-static raised access floor. Calcium Sulphate Access floor. we have got ISO9001 , ISO14001 certificate.

It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.

OYANA Company makes a contribution for products especially on OA raised floor used in the intelligent modern building and meeting rooms,5A office buildings

Pay attention,Pay attention,we can OEM
