Ventilated 600x600 Metal Raised Access Floor For Data Center

Name: Ventilated 600x600 Metal Raised Access Floor For Data Center
Brand: Ventilated 600x600 Metal Raised Access Floor For Data Center
SKU: Ventilated 600x600 Metal Raised Access Floor For Data Center
Rating: 5 (199 reviews)

Product Details

Certification: CE, ISO

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            600x600 Metal Raised Access Floor, Data Center Metal Raised Access Floor, Ventilated Metal Raised Access Floor


Model NO.:	BG Serious1000	Size:	600*600mm
Function:	Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static	Surface Treatment:	Epoxy Resin
Color:	Grey	Metal Type:	Steel
Usage:	Electrical Factory, Computer Room, Bank, Offices	Advantage:	Long Life Of Usage
Customized:	Customized	Major Technology:	Welding
Antistatic Parameter:	Electrostatic Dissipation	Combustion Performance:	A1 Level For Based Board
Combustion Effective:	Fv-1 Level For HPL	Major Materials:	Steel Plate,Steel Beam
Transport Package:	Wooden Pallet	Specification:	Steel 600*600
Trademark:	OYANA	Origin:	China
HS Code:	73089000	Supply Ability:	200000 Pieces
Package Size:	61.00cm * 61.00cm * 20.00cm	Package Gross Weight:	10.000kg
After-sales Service:	Online Support	Warranty:	1 Year
Material:	Metal	Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment	Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Model NO.:	BG Serious1000
Size:	600*600mm
Function:	Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static
Surface Treatment:	Epoxy Resin
Color:	Grey
Metal Type:	Steel
Usage:	Electrical Factory, Computer Room, Bank, Offices
Advantage:	Long Life Of Usage
Customized:	Customized
Major Technology:	Welding
Antistatic Parameter:	Electrostatic Dissipation
Combustion Performance:	A1 Level For Based Board
Combustion Effective:	Fv-1 Level For HPL
Major Materials:	Steel Plate,Steel Beam
Transport Package:	Wooden Pallet
Specification:	Steel 600*600
Trademark:	OYANA
Origin:	China
HS Code:	73089000
Supply Ability:	200000 Pieces
Package Size:	61.00cm * 61.00cm * 20.00cm
Package Gross Weight:	10.000kg
After-sales Service:	Online Support
Warranty:	1 Year
Material:	Metal
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment
Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Description

Ventilated 600x600 Metal Raised Access Floor For Data Center

Product Description

OYANA Floor Co.,LTD is a prossional manufacturer of raised floors and becomes one of the fastest growing company.we offer comprehensive and meticulous services including resarch , design, production,sales and installation.All colleagues of company always carry forward the harding working and enterprising spirit for the better products to our customers

OYANA Computer Room Equipment Co.,Ltd is mainly producing OA network raised floor,Anti-static raised access floor. Calcium Sulphate Access floor. we have got ISO9001 , ISO14001 certificate.

It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.

OYANA Company makes a contribution for products especially on peforated steel raised floor with intelligent adjustment for temperature control system ,It is a special equipment for colling dispatch in data center.

Pay attention,Pay attention,we can OEM

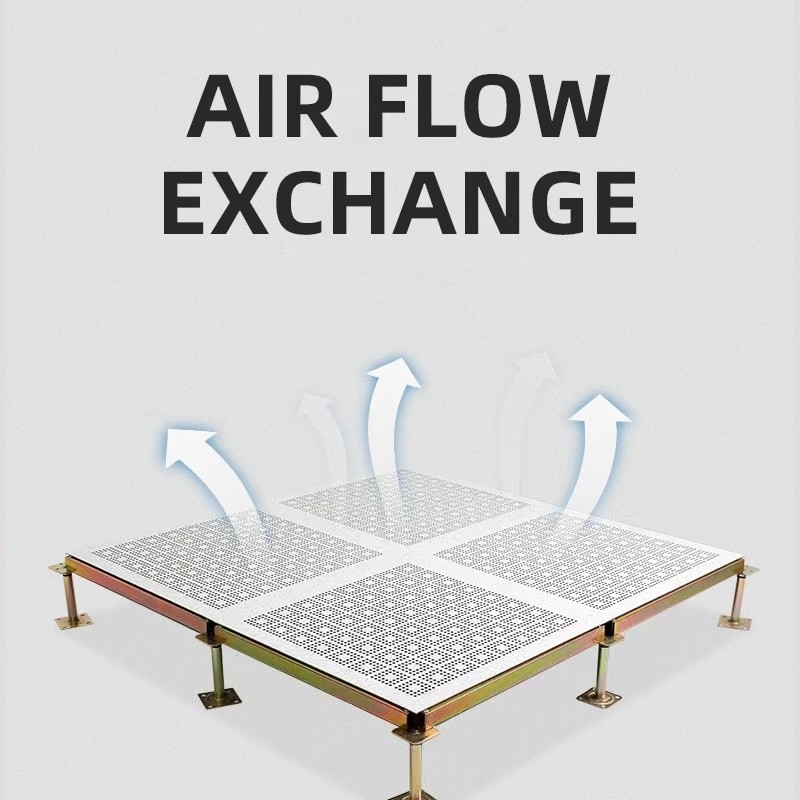

Ventilated Raised Access Floor for Data Center

Composition of panel:

>>> 1.8mm thick upper steel plate and steel tubes of bottom are assembled together by welding.

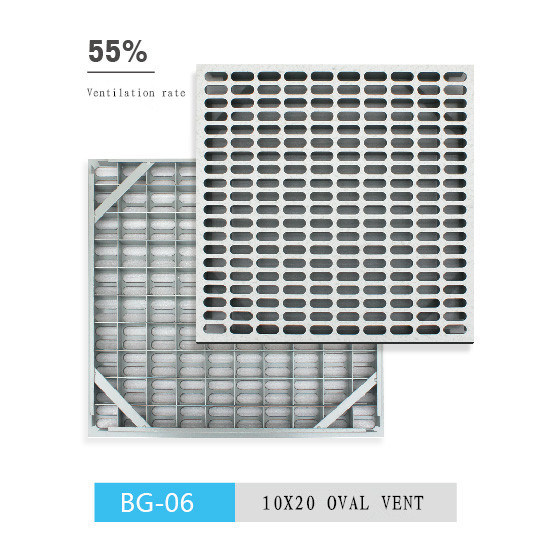

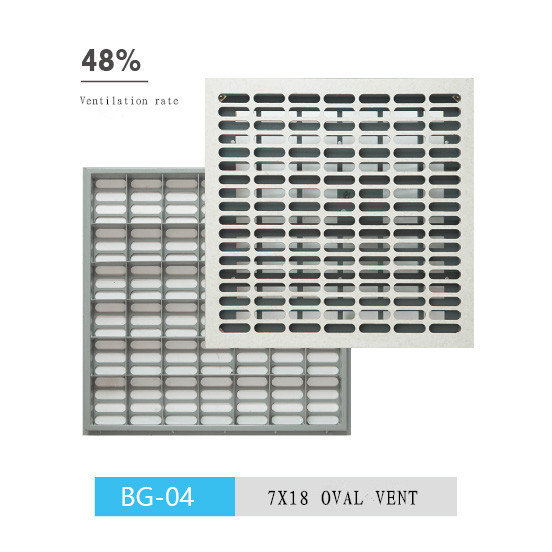

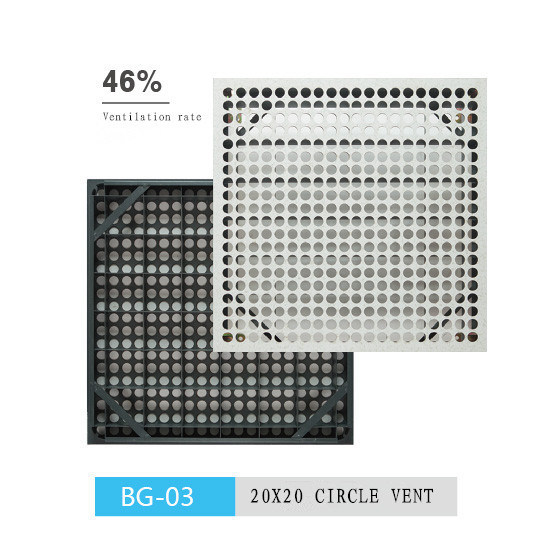

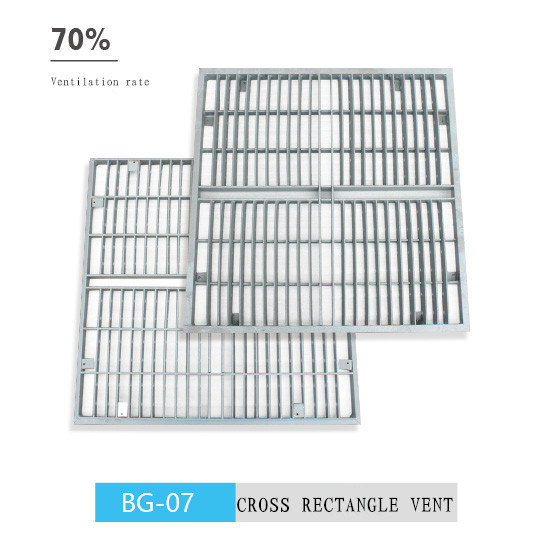

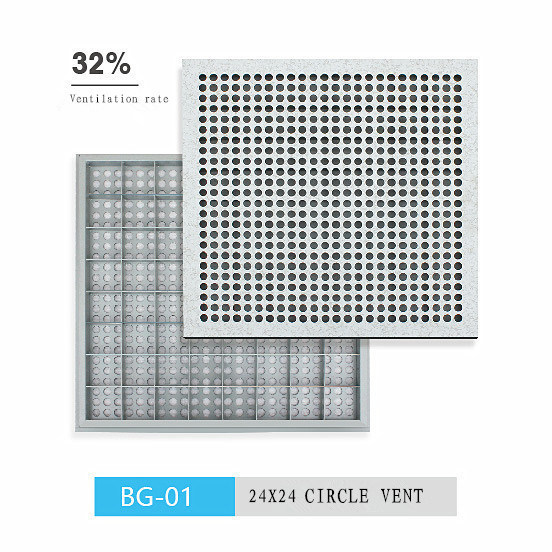

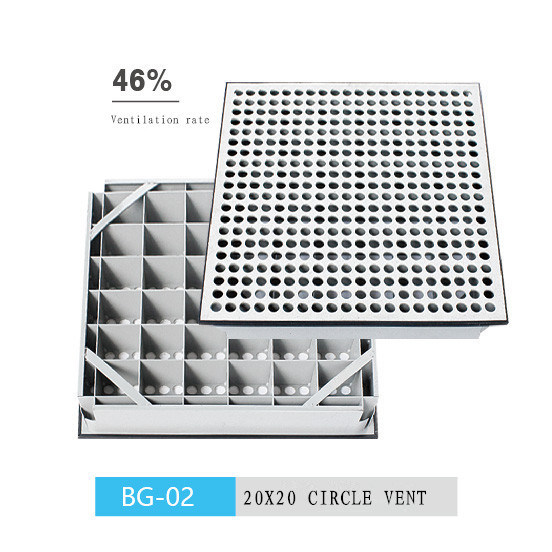

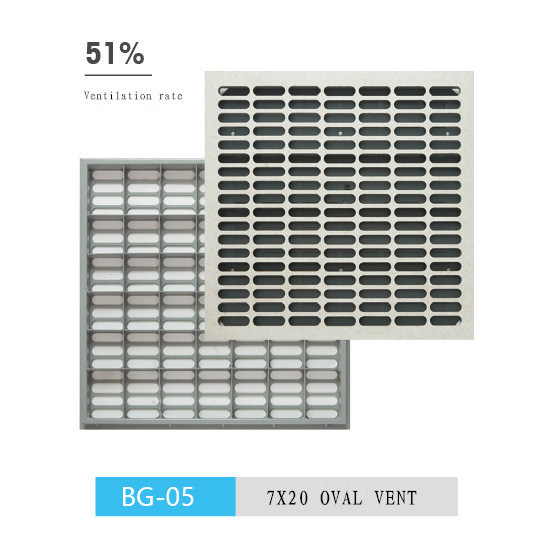

>>>The top steel plate can be punched different dimensions and quantities holes

>>>This type of panel has great loading performance.It is better than cement panel

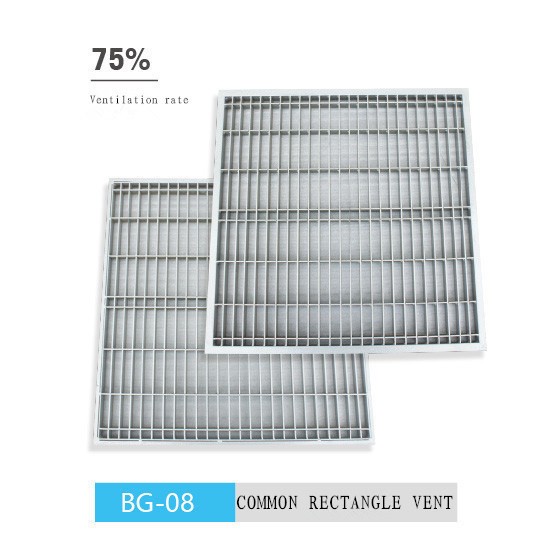

>>>air flow rate will reach 20%,25%,30%,35%,45%,60%

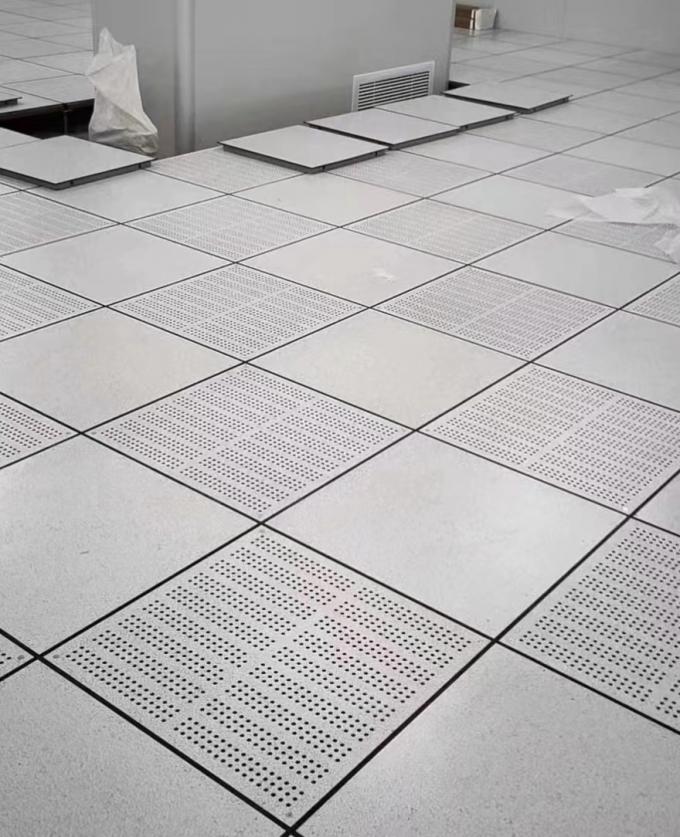

cement panel and ventilation panel are assembled together for data center

Application:
Ventilation plate has all the characteristics of cement panel. It can meet the needs of 0-85% ventilation by means of ventilation regulator. Banks, government, enterprises and institutions of high-grade computer rooms, clean rooms, purification rooms and places with high load-bearing and material requirements.

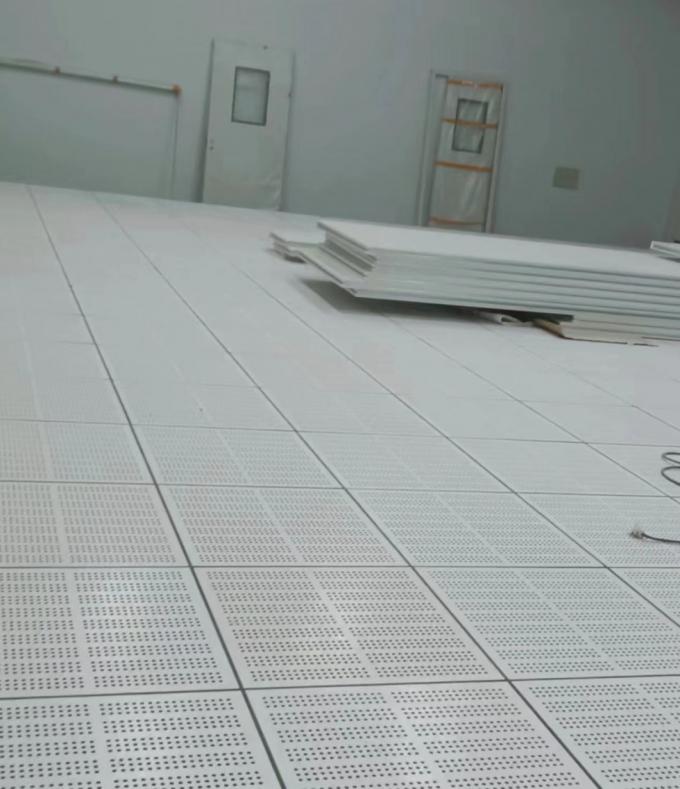

Ventilation floor can be installed with cemented raised floor for data room to ajust the temperature.

	Dimensions(mm)	Concentrated Load	Uniform Load	Impact Load
OYN-440	60060035mm	440 LB / 1960 N	2148 LB / 9720 N	150 LB/ 68KG
OYN-670	60060035mm	670 LB / 2950 N	2808 LB / 12500 N	200 LB/ 90KG
OYN-800	60060035mm	800 LB / 3560 N	3596 LB / 16100 N	250 LB/ 112 KG
OYN-1000	60060035mm	1000 LB / 4450 N	5168 LB /23000 N	300 LB/ 135 KG
OYN-1250	60060035mm	1250 LB / 5560 N	7415 LB / 33000 N	350 LB/ 158 KG

Raised Access Floor TEST REPORT (No:658)

SUBJECT:

Testing of Anti-static Raised Floor by OUYANA Co.,Ltd

Product Name:Anti-static Raised Access Floor

Model: HDG.600*600*35mm(OYN-800)

Date: Mar.7^th,2022

Quantity of samples: 1PS Panel + 1PS HPL

Testing Environment	Temperature: 25ºC
	Relative: 45%RH

Test result summary table for panel

TEST ITEMS	SPECIFICATION		TEST RUSELTS
1.System Resistance	Conductive: < 1.0x10⁶Ω
	Dissipative: 1.0x10⁶Ω - 1.0x10¹⁰Ω		7.28X10⁸Ω

2.Mechanical properties	Point Load: =300N(30Kg)	Deflection:	Centre: =0mm	Centre of edge =0mm
		Permanent Deflection:	Centre: =0mm	Centre of edge =0mm
	Point Load: =3560N(300Kg)	Deflection:	Centre: ≤1.5mm	Centre of edge ≤1.6mm
		Permanent Deflection:	Centre: ≤1mm	Centre of edge ≤1mm
	Uniform Distributed Load: =16100N/M²		Deflection: ≤0.05mm	Permanent Deflection: ≤0.05mm
	Ultimate load:		11000N
	Rolling load: 10times/10000times		3560N/2670N

3.combustion performance	Grade:A1

Test result summary table for Anti-static Laminate(HPL)

Product Name:Anti-static Laminate

size: HDG.600*600*1.2(mm)

Date: Nov.17^th,2022

TEST ITEMS	SPECIFICATION	TEST RUSELTS
Surface Resistance:	1.0x10⁴-1.0x10⁹Ω	4.74X10⁸Ω
Volume Resistance:	1.0x10⁴-1.0x10⁹Ω	1.98X10⁸Ω
Wear Proof Property:	Ultra-high wear properties≥3000r	3400r
Combustion Performance	Finishing Material: HPL≤30S Grade:FV-1	29.80S

Our andvantage is designing new products for you .we have engineers to devolop and share experience with you.
