Fireproof Computer Room Perforated Floor Tiles Data Center OA

Name: Fireproof Computer Room Perforated Floor Tiles Data Center OA
Brand: Fireproof Computer Room Perforated Floor Tiles Data Center OA
SKU: Fireproof Computer Room Perforated Floor Tiles Data Center OA
Rating: 5 (111 reviews)

Product Details

Certification: CE, ISO

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Data Center Perforated Floor Tiles, OA Perforated Floor Tiles, Fireproof Perforated Floor Tiles


Model NO.:	OYN - 600	Size:	600*600mm
Function:	Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static	Surface Treatment:	Epoxy Resin
Color:	Grey	Metal Type:	Steel
Advantage:	Long Life Of Usage	Customized:	Customized
System Resistance:	Disspative	Combustion Permance:	A1 Level For Based Board
Combustion Effectiveness:	Fv-1 Level For HPL	Treatment For Based Board:	Epoxy Resin
Major Technolegy:	Welding	Transport Package:	Wooden
Specification:	Cement, Steel	Trademark:	OYANA
Origin:	Chian	HS Code:	73089000
Supply Ability:	500000pieces	Package Size:	61.00cm * 61.00cm * 15.00cm
Package Gross Weight:	18.000kg	After-sales Service:	Online Support
Warranty:	1 Year	Material:	Metal
Samples:	US$ 0/piece 1 Piece(Min.Order) \|	Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment	Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Model NO.:	OYN - 600
Size:	600*600mm
Function:	Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static
Surface Treatment:	Epoxy Resin
Color:	Grey
Metal Type:	Steel
Advantage:	Long Life Of Usage
Customized:	Customized
System Resistance:	Disspative
Combustion Permance:	A1 Level For Based Board
Combustion Effectiveness:	Fv-1 Level For HPL
Treatment For Based Board:	Epoxy Resin
Major Technolegy:	Welding
Transport Package:	Wooden
Specification:	Cement, Steel
Trademark:	OYANA
Origin:	Chian
HS Code:	73089000
Supply Ability:	500000pieces
Package Size:	61.00cm * 61.00cm * 15.00cm
Package Gross Weight:	18.000kg
After-sales Service:	Online Support
Warranty:	1 Year
Material:	Metal
Samples:	US$ 0/piece 1 Piece(Min.Order) \|
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment
Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Description

Fireproof Computer Room Perforated Floor Tiles Data Center OA

Product Description

OYANA Computer Room Equipment Co.,Ltd is mainly producing OA network raised floor,Anti-static raised access floor. Calcium Sulphate Access floor. we have got ISO9001 , ISO14001 certificate.

It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.

OYANA Company makes a contribution for products especially on peforated steel raised floor with intelligent adjustment for temperature control system ,It is a special equipment for colling dispatch in data center.

Pay attention,Pay attention,we can OEM

Computer Room, Data Center OA Raised Access Floor From Changzhou China

Prodcut Name: Raised Floor(Black edge)

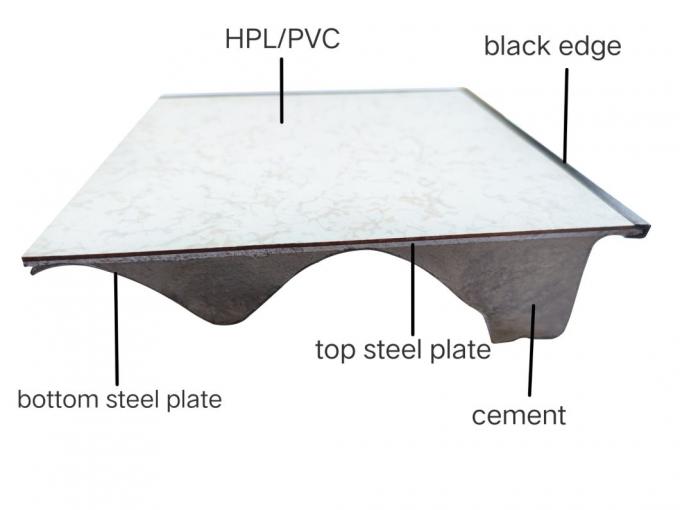

Structure:
Top plate using SPCC hard rolled steel,bottom plate using ST14 steel for strecth,after automatic spot welding,The panel is infilled with cement, The surface of panel adopts resistance and anti-static HPL/PVC

Feacture:
1.Black conductive edge strip around the panel
2.Conbustion permance is A1 level for based board
3.Structural stability and quicker installation
4.All steel is using epoxy resin for rust-proof of based board
5.High loading capactiy,sound-proof

Name:Antistatic raised access floor covered with(HPL/PVC)
Type:OYN-1000
size:600*600*35
surface with anti-static HPL 1.2mm
concentrated load ≥1000 lb,4450 N

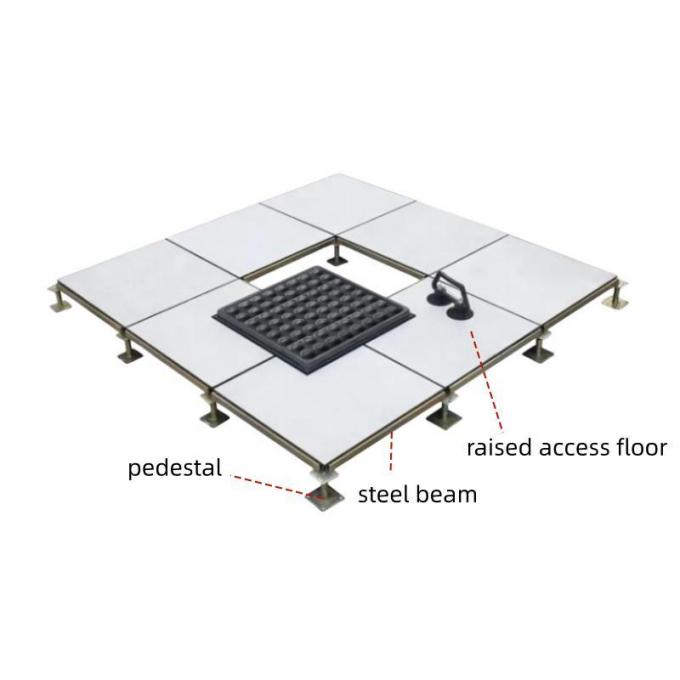

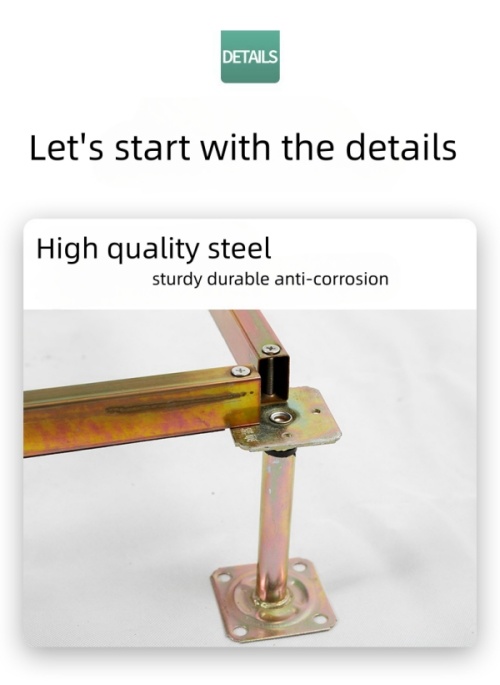

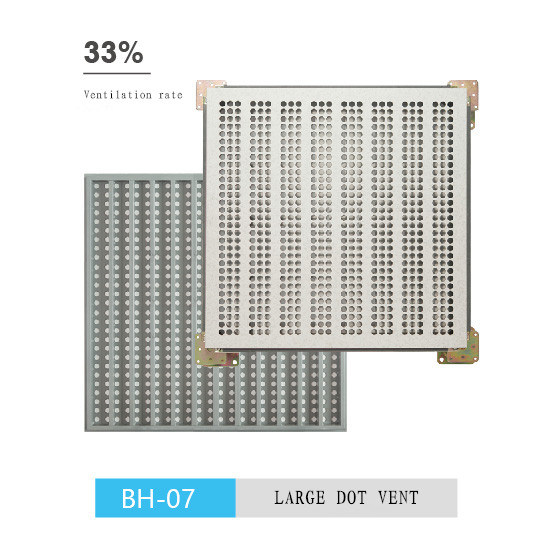

>>>The frame is made of pedestals and steel tubes
>>>All steel adopt yellow zinc
>>>The steel frame is absolutly stable

>>> 1.8mm thick upper steel plate and steel tubes of bottom are assembled together by welding.

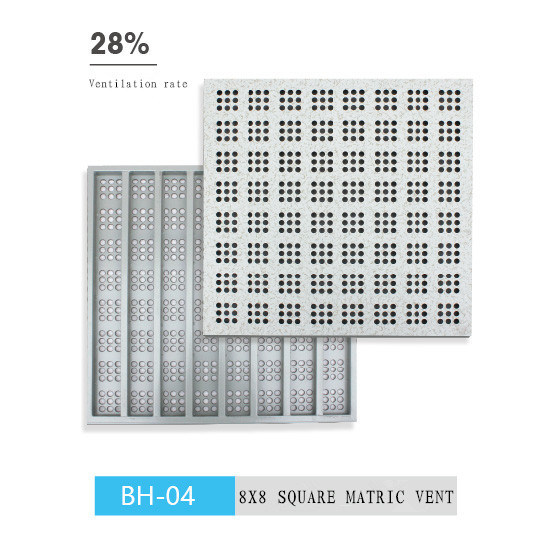

>>>The top steel plate can be punched different dimensions and quantities holes

>>>This type of panel has great loading performance.It is better than cement panel

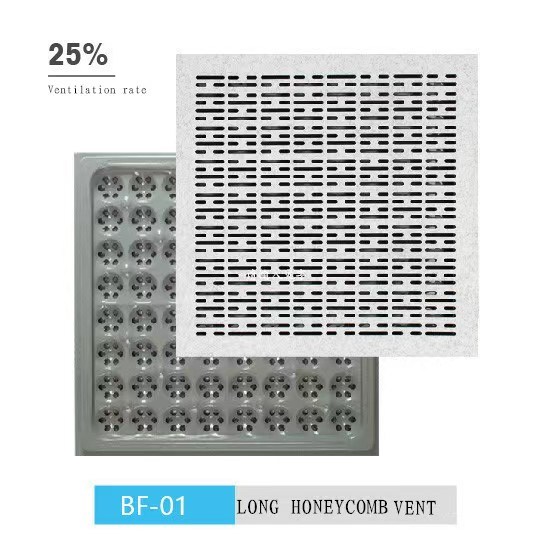

>>>air flow rate will reach 20%,25%,30%,35%,45%,60%

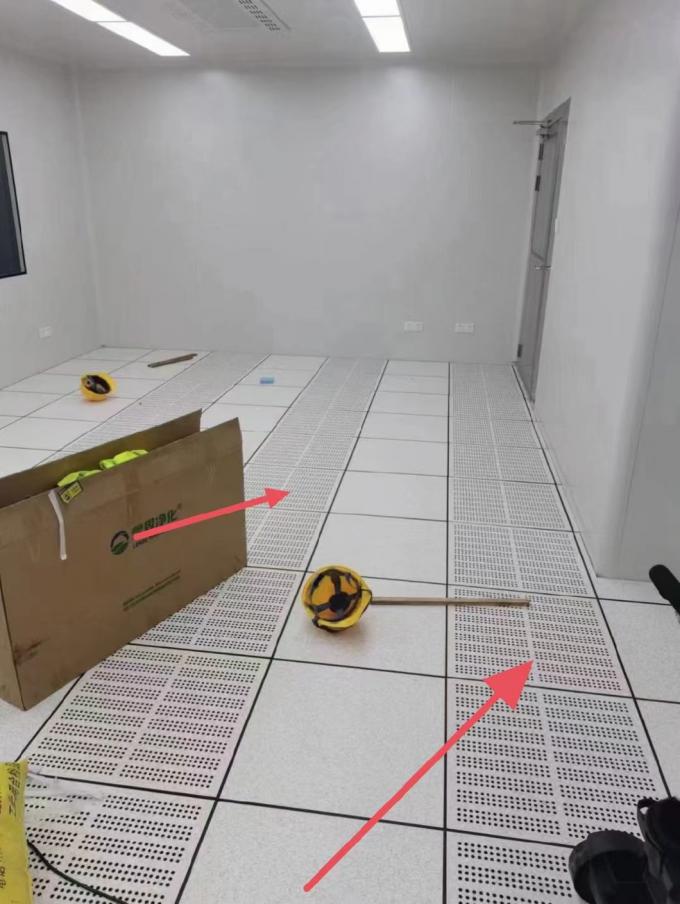

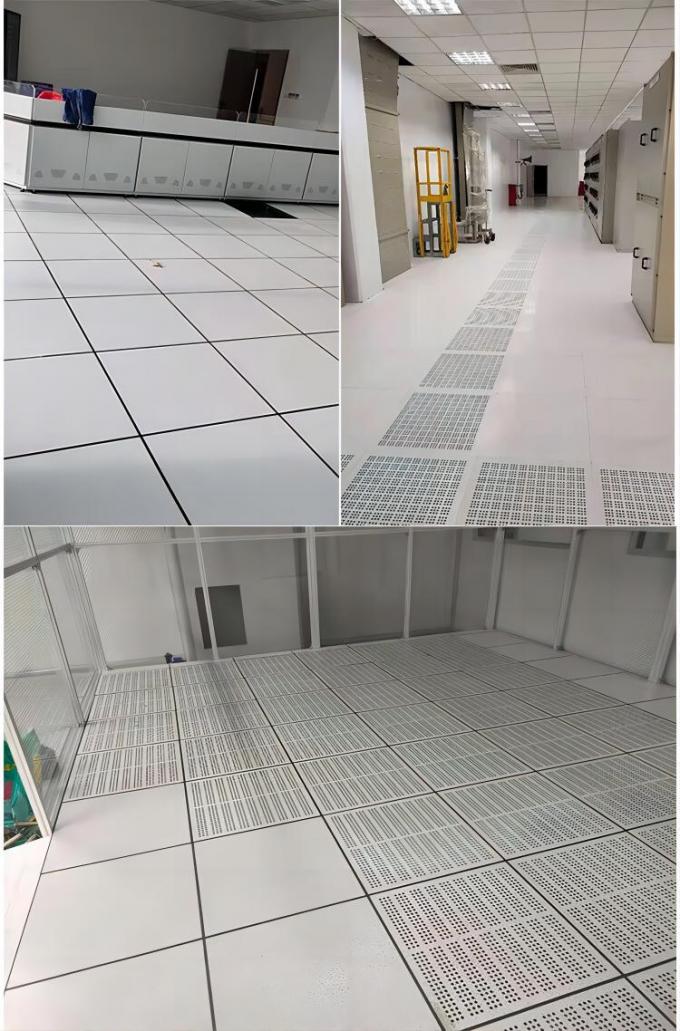

cement panel and ventilation panel are assembled together for data center

Application:
Ventilation plate has all the characteristics of cement panel. It can meet the needs of 0-85% ventilation by means of ventilation regulator. Banks, government, enterprises and institutions of high-grade computer rooms, clean rooms, purification rooms and places with high load-bearing and material requirements.

Computer Room, Data Center OA Raised Access Floor From Changzhou China

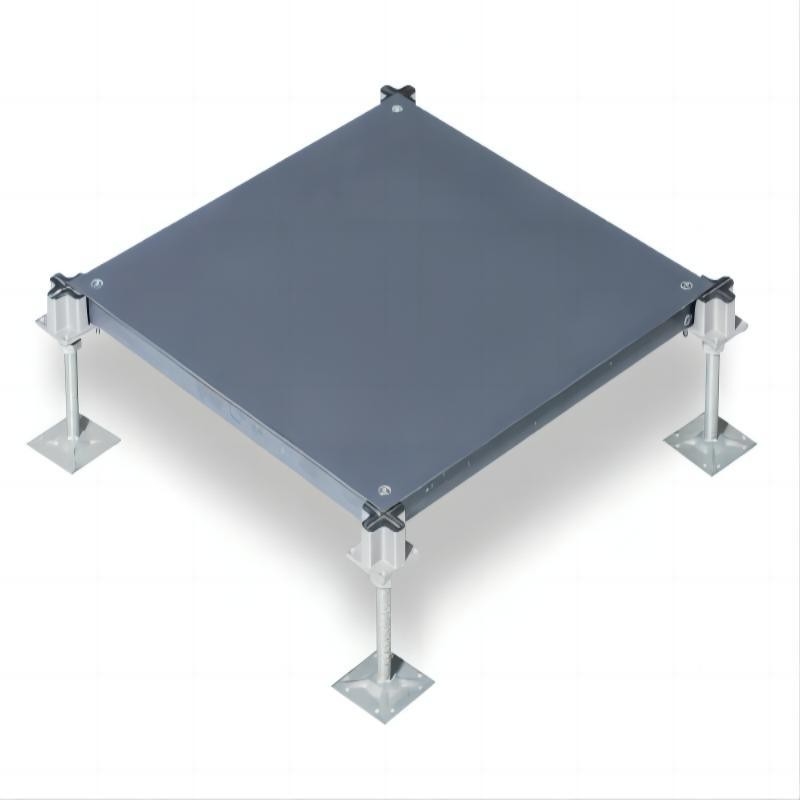

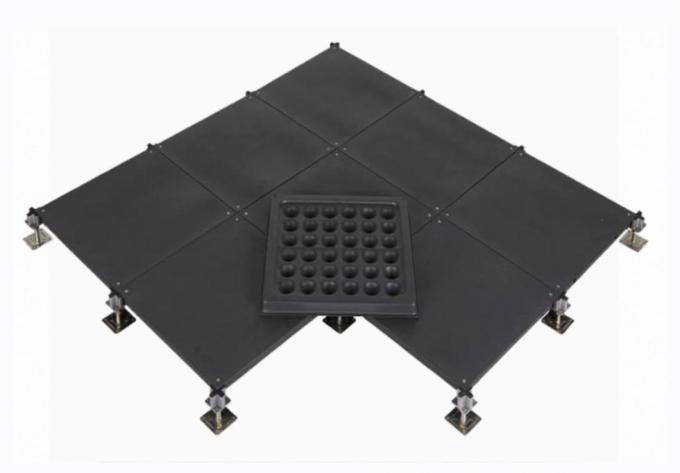

Name: Oa raised access floor
Type:OYN-800(OA)
Size:600*600*33mm
concentrated load ≥800 lb,3560 N

>>>Supports
provided with corner locks and the adjustable four-corner supports,as well as one bracket supports four panel

>>>Features
The holes of corner locks on the molded floor can essure the stableness of flooring system

>>>Configuration
The final flooring can employ square carpets,rolled carpets or PVC veneers and solid wood blocks

>>>Permance
Strong in carrying capacity
good in fireproof and corrosion resistance
compression molding forming
good in interchangeability,easy to assembel and fast to repair

Carpet:
carpet can be laid on the OA acces floor

Application:

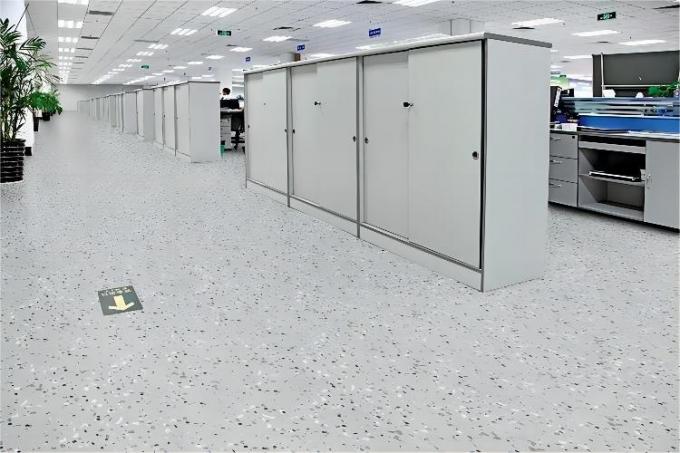

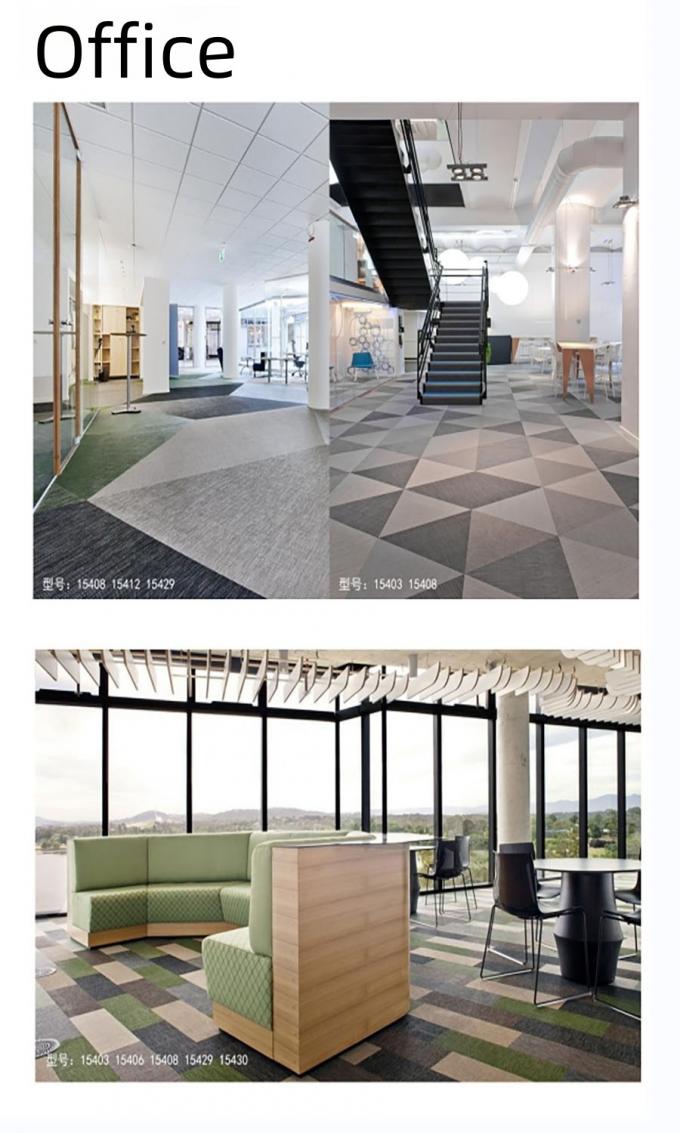

OA600 Net Floor is widely used in 5A Intelligent building and office building .Old office buliding can be remoulding and upgrading with lowest cost.

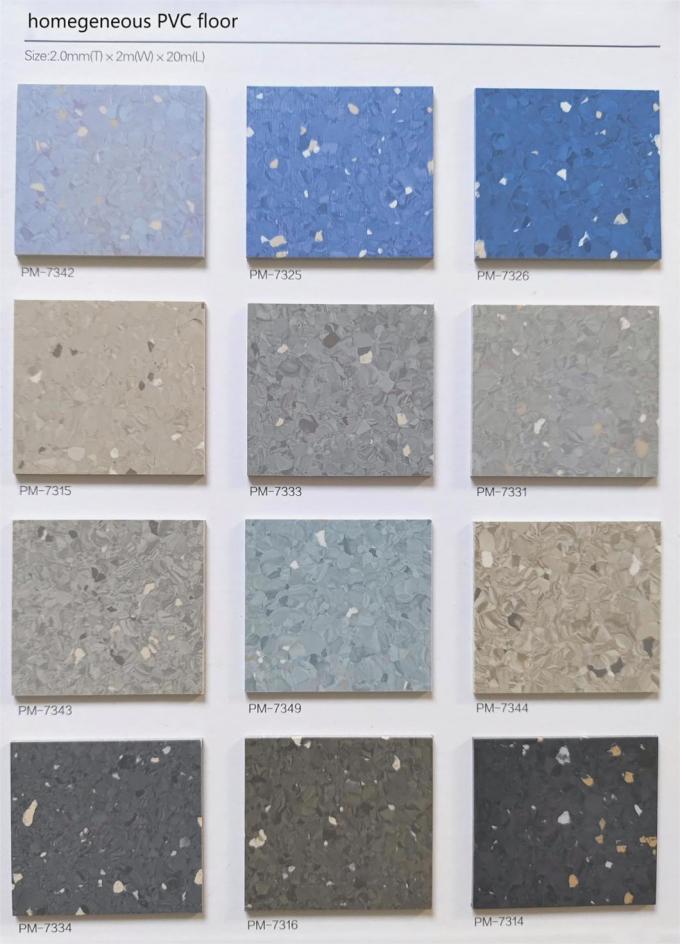

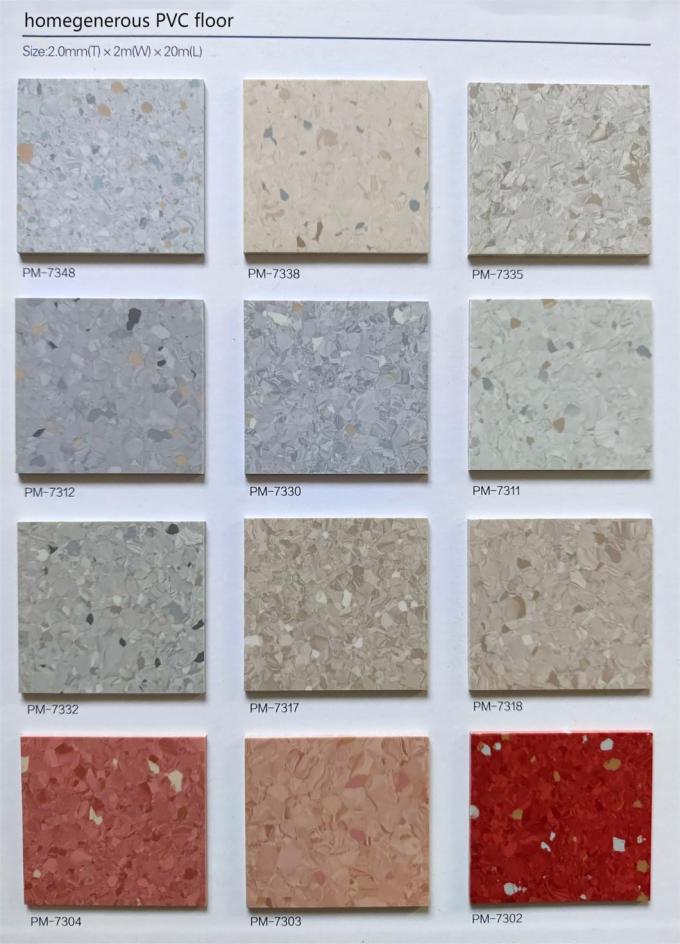

Name:homogeneous PVC floor
size:2m(L)*2m(w)*2.0mm(T)
size:600mm(L)*600mm(w)*2.0mm(T)
Fire rating: level B_f1
Toxic testing: good
Abrasion resistant: level T
surface treatment: SuperPUR

	Dimensions(mm)	Concentrated Load	Uniform Load	Impact Load
OYN-440	60060035mm	440 LB / 1960 N	2148 LB / 9720 N	150 LB/ 68KG
OYN-670	60060035mm	670 LB / 2950 N	2808 LB / 12500 N	200 LB/ 90KG
OYN-800	60060035mm	800 LB / 3560 N	3596 LB / 16100 N	250 LB/ 112 KG
OYN-1000	60060035mm	1000 LB / 4450 N	5168 LB /23000 N	300 LB/ 135 KG
OYN-1250	60060035mm	1250 LB / 5560 N	7415 LB / 33000 N	350 LB/ 158 KG

Rsised FLOOR TEST REPORT   (No:1098)

SUBJECT:

Testing of Anti-static Raised Floor by OUYANA Co.,Ltd

Product Name:Anti-static Raised Access Floor

Model:      HDG.600*600*35mm(OYN-800)

Date:       Mar.7^th,2022

Quantity of samples: 1PS Panel + 1PS HPL

Testing Environment	Temperature: 25ºC
	Relative: 45%RH

Test result summary table for panel

TEST ITEMS	SPECIFICATION		TEST RUSELTS
1.System Resistance	Conductive: < 1.0x10⁶Ω
	Dissipative: 1.0x10⁶Ω - 1.0x10¹⁰Ω		7.28X10⁸Ω

2.Mechanical properties	Point Load: =300N(30Kg)	Deflection:	Centre: =0mm	Centre of edge =0mm
		Permanent Deflection:	Centre: =0mm	Centre of edge =0mm
	Point Load: =3560N(300Kg)	Deflection:	Centre: ≤1.5mm	Centre of edge ≤1.6mm
		Permanent Deflection:	Centre: ≤1mm	Centre of edge ≤1mm
	Uniform Distributed Load: =16100N/M²		Deflection: ≤0.05mm	Permanent Deflection: ≤0.05mm
	Ultimate load:		11000N
	Rolling load: 10times/10000times		3560N/2670N

3.combustion performance	Grade:A1

Test result summary table for Anti-static Laminate(HPL)

Product Name:Anti-static Laminate

size: HDG.600*600*1.2(mm)

Date: Nov.17^th,2022

TEST ITEMS	SPECIFICATION	TEST RUSELTS
Surface Resistance:	1.0x10⁴-1.0x10⁹Ω	4.74X10⁸Ω
Volume Resistance:	1.0x10⁴-1.0x10⁹Ω	1.98X10⁸Ω
Wear Proof Property:	Ultra-high wear properties≥3000r	3400r
Combustion Performance	Finishing Material: HPL≤30S Grade:FV-1	29.80S
