Steel Grille Acoustic Perforated Raised Floor Antistatic

Name: Steel Grille Acoustic Perforated Raised Floor Antistatic
Brand: Steel Grille Acoustic Perforated Raised Floor Antistatic
SKU: Steel Grille Acoustic Perforated Raised Floor Antistatic
Rating: 4.7 (188 reviews)

Product Details

Certification: CE, ISO

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Acoustic Perforated Raised Floor, Antistatic Perforated Raised Floor, Steel Grille Perforated Raised Floor


Model NO.:	BG-07	Function:	Thermal Insulation, Fireproof, Soundproof, Waterproof, Anti-static
Surface Treatment:	Antistatic PVC	Color:	Grey
Advantage:	Long Life Of Usage	Customized:	Customized
Transport Package:	Wooded Pallet	Specification:	600mm*600mm
Trademark:	OYANA	Origin:	China
HS Code:	73089000	Supply Ability:	200000 Pieces/Year
Package Size:	610.00cm * 610.00cm * 15.00cm	Package Gross Weight:	13.000kg
Warranty:	1 Year	Material:	Metal
Size:	600*600mm	Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment	Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Model NO.:	BG-07
Function:	Thermal Insulation, Fireproof, Soundproof, Waterproof, Anti-static
Surface Treatment:	Antistatic PVC
Color:	Grey
Advantage:	Long Life Of Usage
Customized:	Customized
Transport Package:	Wooded Pallet
Specification:	600mm*600mm
Trademark:	OYANA
Origin:	China
HS Code:	73089000
Supply Ability:	200000 Pieces/Year
Package Size:	610.00cm * 610.00cm * 15.00cm
Package Gross Weight:	13.000kg
Warranty:	1 Year
Material:	Metal
Size:	600*600mm
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment
Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Description

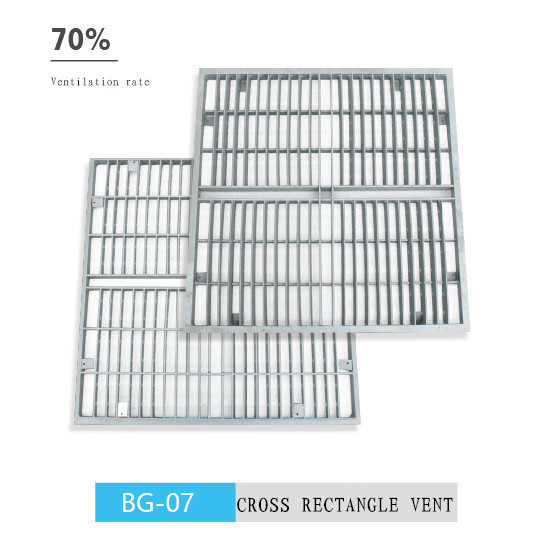

Steel Grille Acoustic Perforated Raised Floor Antistatic

Product Description

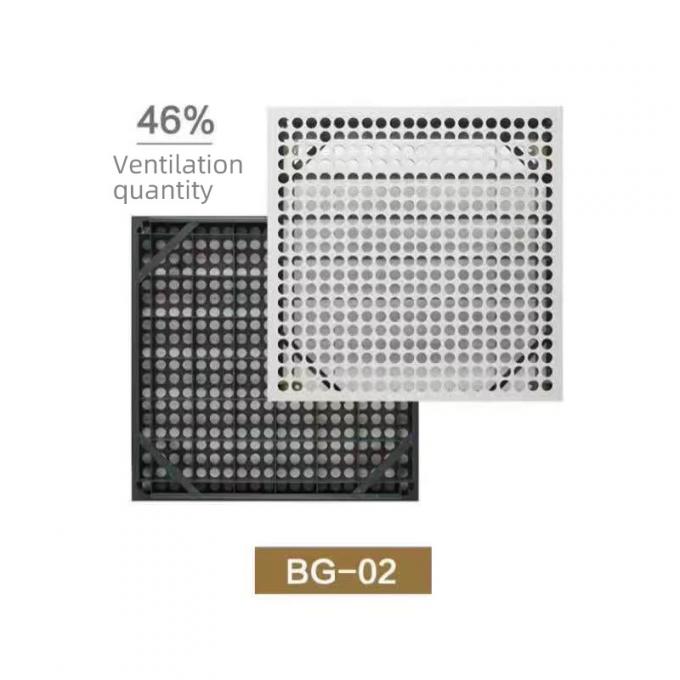

Steel Grille Perforated Access Floor System

OYANA Computer Room Equiqment Co.,Ltd is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous
supplier in demostic market and overseas market.so we would like to share with you.

OYANA Company makes a contribution for products especially on peforated steel raised floor and Calcium Sulphate raised floor.

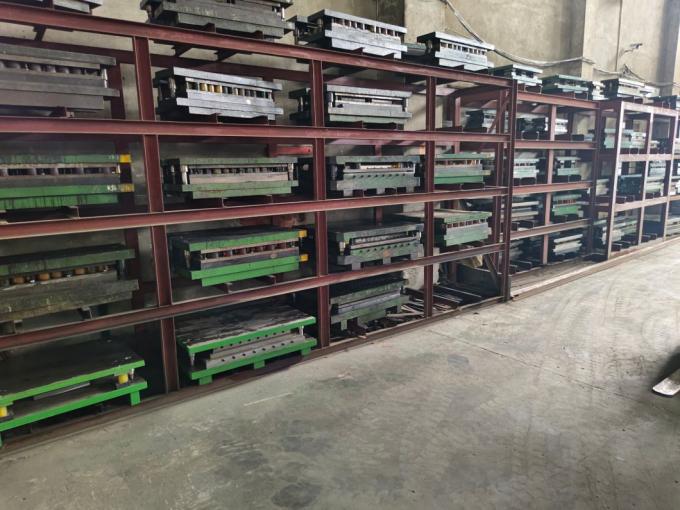

The picture on the left shows us many kinds of molds to produce peforated floor.Many different holes are punched on the cold-rolled
steel plate

Pay attention,Pay attention,we can OEM

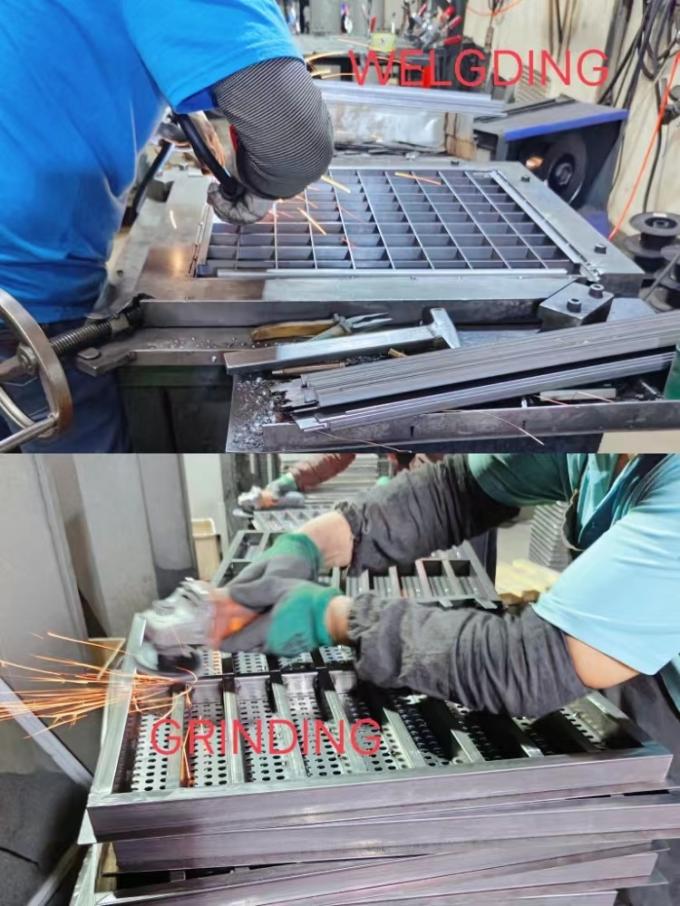

Perforated flooring is produced by cutting steelpipes,welding,gringding burrs,It's a tedious process,so our worker will put more effort to complete their work to ensure that each piece of sheet can be qualited to pass

	Dimensions(mm)	Concentrated Load	Uniform Load	Impact Load
FS440	60060035mm	440 LB / 1960 N	2148 LB / 9720 N	150 LB/ 68KG
FS670	60060035mm	670 LB / 2950 N	2808 LB / 12500 N	200 LB/ 90KG
FS800	60060035mm	800 LB / 3560 N	3596 LB / 11600 N	250 LB/ 112 KG
FS1000	60060035mm	1000 LB / 4450 N	5168 LB /2300 N	300 LB/ 135 KG
FS1250	60060035mm	1250 LB / 5560 N	7415 LB / 33000 N	350 LB/ 158 KG

TEST REPORT
SUBJECT:
Testing of Anti-static Raised Floor by OUYANA Co.,Ltd

Product Name:Anti-static Raised Access Floor

Model: HDG.600*600*35mm(FS 670 )

Date: Mar.7 ^th ,2021

Quantity of samples: 1PS Panel + 1PS HPL

Testing Environment	Temperature: 25ºC
	Relative: 45%RH

Test result summary table for panel

TEST ITEMS	SPECIFICATION		TEST RUSELTS
1.System Resistance	Conductive: < 1.0x10⁶Ω
	Dissipative: 1.0x10⁶Ω - 1.0x10¹⁰Ω		7.28X10⁸Ω

2.Mechanical properties	Point Load: =300N(30Kg)	Deflection:	Centre: =0mm	Centre of edge =0mm
		Permanent Deflection:	Centre: =0mm	Centre of edge =0mm
	Point Load: =3000N(300Kg)	Deflection:	Centre: ≤1.5mm	Centre of edge ≤1.6mm
		Permanent Deflection:	Centre: ≤1mm	Centre of edge ≤1mm
	Uniform Distributed Load: =20000N/M²		Deflection: ≤0.05mm	Permanent Deflection: ≤0.05mm
	Ultimate load:		9850N
	Rolling load: 10times/10000times		2946N/2356N
	Impact load:		4600N
combustion performance	Grade:A1_fl

Test result summary table for Anti-static Laminate(HPL)

Product Name:Anti-static Laminate

size: HDG.600*600*1.2(mm)

TEST ITEMS	SPECIFICATION	TEST RUSELTS
Surface Resistance:	1.0x10⁴-1.0x10⁹Ω	4.74X10⁸Ω
Volume Resistance:	1.0x10⁴-1.0x10⁹Ω	1.98X10⁸Ω
Wear Proof Property:	Ultra-high wear properties≥3000r	3400r
Combustion Performance	Finishing Material: HPL≤30S Grade:FV-1	29.80S

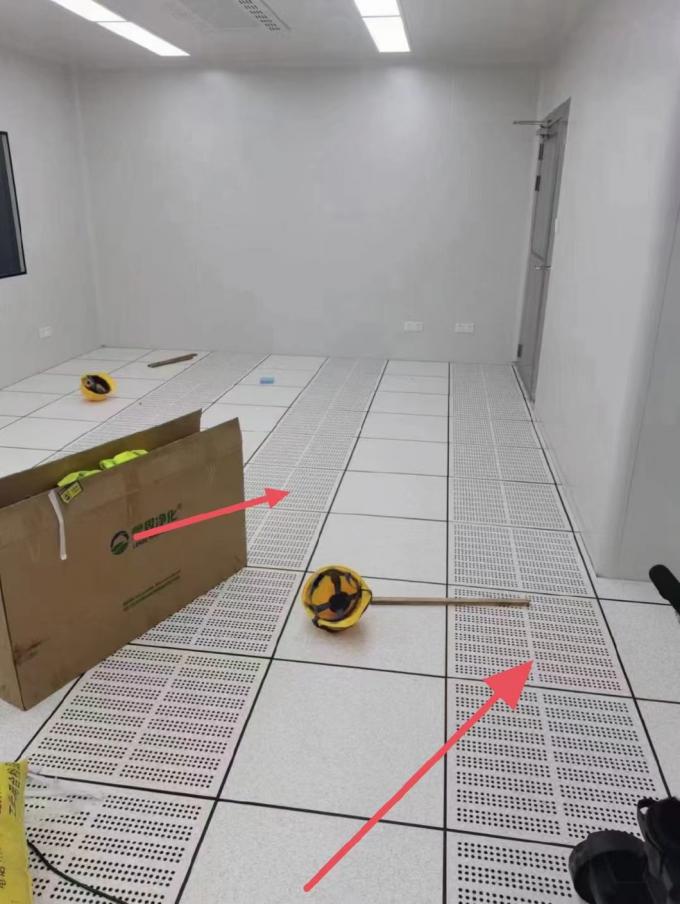

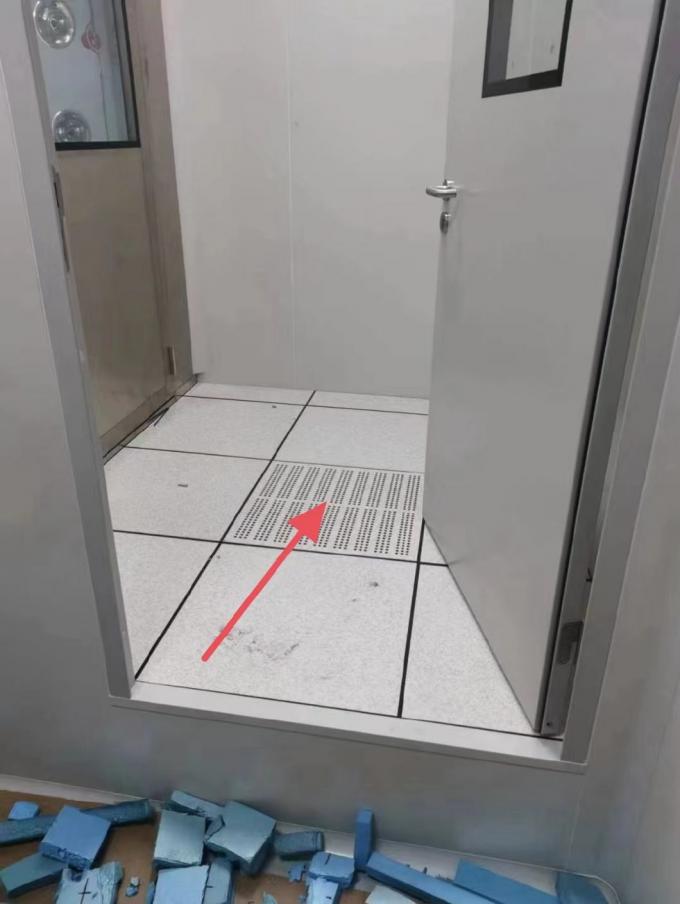

Actual installation rendering below:
